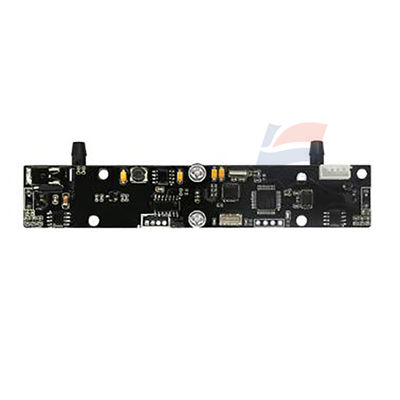

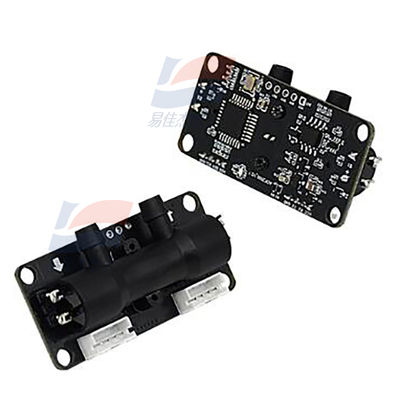

YJJ AOF1000 Long Model Ultrasonic Oxygen Sensor Oxygen Gas Concentration Flow Sensor Module

Product Description:

YJJ AOF1000 Long Model Ultrasonic Oxygen Sensor Oxygen Gas Concentration Flow Sensor Module

Features:

AOF1000 is an economical and practical oxygen concentration detection sensor. It uses the principle of ultrasonic wave propagation to detect oxygen concentration, flow rate and temperature, and directly outputs the measured values. It features full-range temperature compensation, low cost, high reliability, ease of use, strong anti-interference ability, and no need for regular calibration.

Compared with traditional electrochemical oxygen sensors, the service life of AOF1000 is significantly extended. During its life cycle, it automatically calibrates without maintenance. The oxygen concentration detection range is wide, suitable for the detection of oxygen concentration of 21% to 95.6% in oxygen generators. It is an ideal choice for OEM of oxygen generators.

As an ultrasonic oxygen sensor for precise measurement of oxygen concentration and flow rate, it can be widely applied in various devices that need to detect oxygen concentration and flow rate in fields such as medicine, industry, chemical engineering, mining and food. For example: medical oxygen generators, industrial oxygen equipment, oxygen concentration detection equipment used in mining environments, and oxygen concentration detection in food storage and production equipment.

Product model: AOF1000

Working voltage: 12V

Preheating time: 10 seconds

Concentration detection range: 21 - 95.6% (oxygen content in air)

Concentration resolution: 0.1%

Concentration detection accuracy: ±1.5% F.S.

Flow detection range: 0 - 10L/min

Flow resolution: 0.1L/min

Flow detection accuracy: ±0.2L/min

Detection cycle: 500ms

Communication method: Serial port UART/9600bps

Operating temperature: 5 - 55°C

Sensor weight: 22.7g

Shell material: PBT

Specifications:
