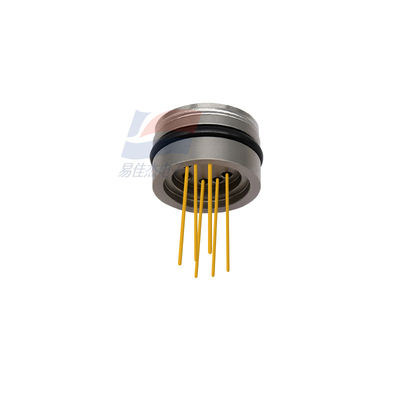

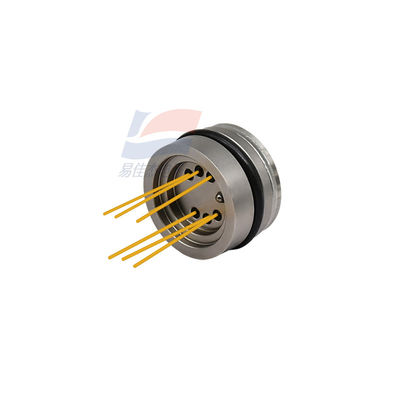

YJJ ADS11 ADS12 0.7-2.9MP Diffusion Silicon Absolute Pressure Sensor Is Used in Gas-Liquid Pressure Control System

Product Description:

YJJ ADS11 ADS12 0.7-2.9MP Diffusion Silicon Absolute Pressure Sensor Is Used in Gas-Liquid Pressure Control System

Features:

ADS11 ADS12series piezoresistive diffusion silicon sensors adopt self-developed pressure-sensitive sensing chips. The manufacturing process is precise, and the measurement range can reach up to 0.7 - 2.5 MPa. They can directly transmit external pressure to the pressure-sensitive sensing chips and then convert it into electrical signals for output. The product shell is made of 316L stainless steel, which is resistant to environmental corrosion. It has the advantages of high sensitivity, high linearity, and high reliability, and can meet the OEM requirements in specific scenarios.

The ADS11 series of diaphragm silicon sensors are highly suitable for pressure detection of gases and liquids in industrial settings, and are also widely used in industries such as process control, instrument and metering, gas and liquid pressure control systems, transportation equipment, and environmental monitoring.

Product model: ADS11 ADS12series

Power supply voltage: 2 - 10V

Operating current: 0.4 - 2mA

Range: 0.7 - 2.5MPa

Non-linearity: ±0.3%FS

Repeatability: ±0.3%FS

Pressure hysteresis: ±0.3%FS

Overload pressure: 2x

Zero output: 0mV

Full-scale output: < 140mV

Response time: < 5mS

Input impedance: 5.2K

Insulation resistance: 100M

Operating temperature: -40 - 85°C

Storage temperature: -40 - 85°C

Output mode: Analog output
